Battery Abuse Test Chamber: UN 38.3, IEC 62133 & GB/T 18287 Compliance
A purpose-built walk-in or chamber system for overcharge, external short circuit, thermal abuse, nail penetration, drop, and crush testing of lithium-ion and primary cells — aligned with the world's three dominant battery safety frameworks (UN, IEC, GB/T).
Why Battery Abuse Testing Is Non-Negotiable
Lithium-ion cells store 100–265 Wh/kg. Under thermal, electrical, or mechanical abuse, that energy can release in milliseconds — and propagate across a full pack in seconds. Abuse testing is the line that separates a recalled product from a globally-shippable one.
Between 2017 and 2024, lithium-ion battery recalls across consumer electronics, e-mobility, and stationary storage reached an estimated 1.4 billion USD in direct costs. In nearly every published root-cause analysis, the failure mode — overcharge-induced plating, internal short, separator shrinkage, dendrite growth — was something a properly designed abuse test would have surfaced. The test is not a regulatory checkbox. It is the cheapest insurance against a field failure that costs 10,000× the test budget.
Four failure modes the abuse chamber must reliably reproduce
- Thermal runaway propagation — a single cell venting at 200°C+ cascading to neighbors through shared heat paths.
- External short circuit — sustained low-impedance current across terminals producing rapid joule heating.
- Mechanical penetration — nail, crush, or impact forcing internal separator failure and direct electrode contact.
- Overcharge abuse — forcing the cell above its rated upper cut-off voltage, plating metallic lithium at the anode.
Field reality: UN 38.3 Section 38.3.4.3 (overcharge) and 38.3.4.4 (short circuit) together replicate ~80% of documented consumer-product battery field failures. If your chamber only does temperature cycling, you are not testing batteries — you are conditioning them.
For a deeper framework on chamber design philosophy and how it relates to test reliability, see our guide on vibration climatic test chambers and the broader high-temperature test chamber lineup, both of which share the same environmental conditioning backbone as a battery abuse chamber.

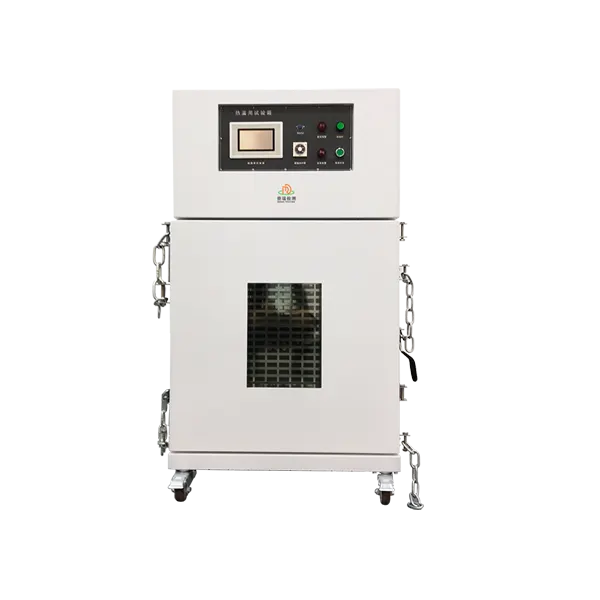

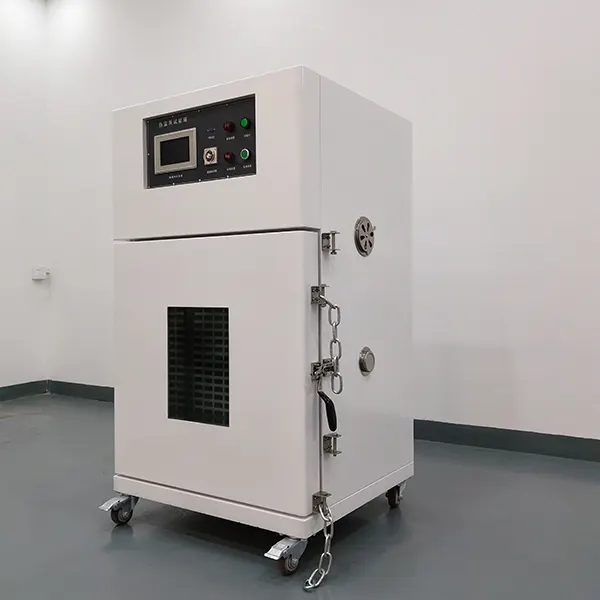

Derui Battery Abuse Test Chamber: Key Specifications
Two architecture options — a bench-scale chamber for cell-level UN 38.3 T.1–T.5 work, and a walk-in room for pack-level T.7 impact / T.8 shock plus propagation studies. Both share the same data backbone and safety interlock logic.
Model range (typical)
For comparison with our other safety-related chamber categories, see the xenon arc weathering chamber and the vibration climatic chamber — the same control platform runs across all three.
Test Process: From Sample Prep to Post-Test Inspection
UN 38.3 T.1–T.8 follows a fixed sequence. Skip or reorder any step, and the test certificate is invalid for IATA / IMO shipping — which is most of the world.
4-stage workflow
- Pre-conditioning (T.1–T.2): Altitude simulation (11.6 kPa, 6h) + thermal cycling (-40°C to +75°C, 10 cycles). Ensures the cell is in a normal but representative state before abuse.
- Electrical abuse (T.3–T.5): Vibration, shock, and external short circuit at 55°C. These are the "quiet killers" — failures that don't show up until weeks into field use.
- Mechanical / thermal abuse (T.6–T.7): Impact (9.1 kg from 61 cm) and overcharge (2× rated V or 2× rated I, whichever is higher, for 24h). This is where the chamber earns its name.
- Forced destruction (T.8, optional / IEC 62133): Nail penetration, crush, or thermal exposure to 130°C for 60 min. Required for IEC 62133-2, UL 1642, and most EV pack-level standards.
Critical sequence rule: T.1 → T.2 → T.3 → T.4 → T.5 → T.6 → T.7 must run in this order on the same cells. T.8 is destructive and uses fresh cells. Reusing a T.7 cell for T.8 is the most common mistake that invalidates an otherwise valid report.
For thermal-only abuse work that doesn't require UN 38.3 sequencing, the high temperature test chamber provides the same -40°C to +150°C range at higher throughput.
Standards Compliance: Which Framework Applies
Three standards cover ~95% of global battery abuse testing. The chamber spec must satisfy all three if the cell ships internationally — pick the one that matches your destination market.
Primary standards
- UN 38.3 (Rev 7, 2023) — Mandatory for any lithium cell or battery shipped by air, sea, or land. Covers transport safety. IATA, IMO, ADR all reference it.
- IEC 62133-2:2017 — Product safety for portable lithium cells in ICT, audio, and small appliances. Required for CE-marked consumer products sold in EU, JP, KR, AU.
- UL 1642 / UL 2054 — North American product safety for cells (1642) and packs (2054). Required for NRTL listing in US and CA.
Regional and product-specific
- GB/T 18287-2013 — China national standard for mobile phone lithium-ion cells. Required for CCC mark.
- GB/T 8897.4-2008 — Primary lithium cells (non-rechargeable).
- YD/T 2344.1-2011 — Telecom-grade LiFePO4 packs for stationary backup.
- UN ECE R100 — EV traction battery safety in EU + signatories.
- GB 38031-2020 — China EV traction battery safety.
- IEC 62660-3 — Lithium cells for EV propulsion, performance + abuse.
For EV packs specifically: The chamber must support pack-level testing (≥ 6 m³ walk-in), high-current short circuit (≥ 1000 A), and have reinforced ventilation capable of handling HF and CO gas evolution. The bench-scale BAC-500 cannot do this — choose BAC-12W or larger.
Cross-reference for environment-only testing: ASTM B117 salt spray testing covers corrosion on battery enclosures, often run in parallel to abuse testing for marine / offshore cells.
Selection Guide: 6 Parameters to Lock Down First
Most procurement failures come from under-specifying one of these six. Walk through them in order — the first three narrow the form factor, the last three determine the test capability.
- Sample form factor — coin cell / 18650 / pouch / prismatic / module / full pack. This decides chamber size. Pouch cells need plate-press fixtures; cylindrical cells need holders; packs need trolley access (door ≥ 1.2 m wide).
- Worst-case energy — kWh of the largest cell or pack. Determines fire suppression capacity and vent duct sizing. 10 kWh+ packs require dedicated exhaust + scrubber, not just a chamber vent.
- Highest test voltage / current — sets the overcharge and short-circuit subsystem. For ≤ 60 V / ≤ 200 A a bench chamber is enough. For EV packs (400 V / 1000 A) you need a walk-in with reinforced bus bars.
- Standards required — UN 38.3, IEC 62133, UL 1642, GB/T 18287, UN R100, GB 38031 each add a fixture or procedure. List them up front; add later is 2–3× the cost.
- Throughput — 8 cells / day vs 80 cells / day. Driven by fixture count and parallel test capability. Multi-cell fixtures (8–16 cells) are the single biggest throughput lever.
- Data export — CSV per channel, OPC-UA to MES, or full SCADA integration. 1 kHz / 32 channels is enough for most; EV pack work often needs 10 kHz / 64 channels.
Common mistake: Spec'ing the chamber for the largest sample, then discovering that the test volume doesn't have enough clearance above and below the sample for the impact drop or nail rig. Always allow 30% headroom beyond the sample's maximum test position.
Construction & Safety: What the Chamber Must Contain
A battery abuse chamber is fundamentally a containment vessel. The thermal system is commodity; the safety system is what keeps the test from taking the building with it.
Mechanical containment
- Wall construction — 1.5–2.0 mm cold-rolled steel with 50–80 mm rock-wool insulation. Standard temp/humidity chamber walls are NOT rated for impact from a vented cell.

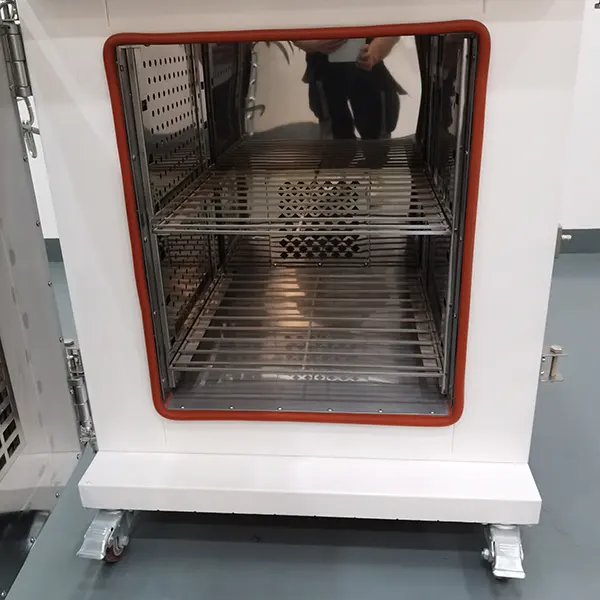

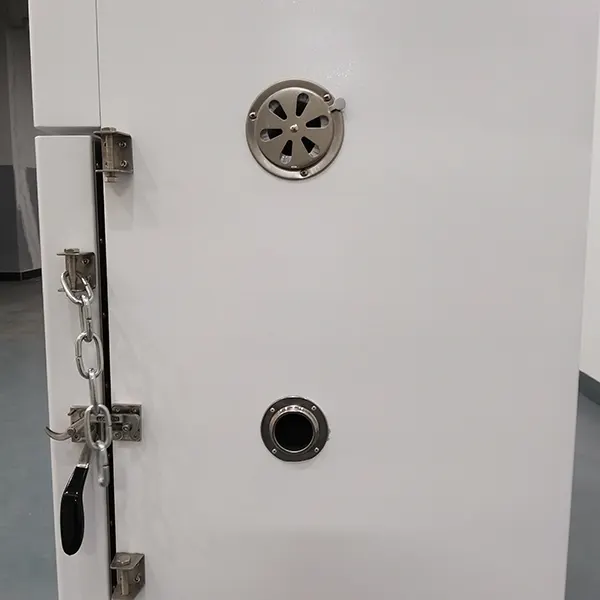

- Door — Twin gasket, 3-point latch, observation window (20 mm polycarbonate, not glass). Glass shatters on thermal runaway; polycarbonate doesn't.
- Vent stack — Independent exhaust to building exterior, ≥ 6 m above grade, with fire damper. Duct diameter sized for worst-case HF/CO release rate.
Electrical & data
- Isolation transformer — between chamber and DUT for tests up to 1000 V DC. Mandatory for IEC 62133-2 overcharge work.
- Cell voltage monitoring — 4-wire Kelvin connection per cell, isolated to 1500 V. Sample rate ≥ 100 Hz; 1 kHz is standard for thermal runaway capture.
- Thermocouples — Type K sheath ≤ 1 mm OD, response time < 2 s. Cell surface + ambient + vent stack — minimum 8 channels per test cell.
Safety interlocks (non-negotiable)
- IR flame detector (4–14 μm) inside chamber — triggers N₂ purge + door lock release.
- CO and HF gas detectors in vent stack — triggers building fire alarm tie-in.
- Emergency ventilation override — independent of controller, key-switch activated.
- Door interlock — no test start with door open; no door open with active test without 30 s purge delay.
Insurance note: Most lab insurance policies require an attested safety system per the four points above. An unverified DIY chamber is a single failure away from a denied claim. Budget 8–12% of the chamber cost for the safety system — it is not optional.
For comparison on the environmental-control side of the same hardware platform, see vibration climatic test chamber and high temperature test chamber specs.
FAQs
7 questions that come up on every battery abuse chamber procurement.
What is the difference between a battery abuse test chamber and a battery cycler?
A cycler does charge/discharge under normal conditions (mostly for capacity and life testing). An abuse chamber does fault injection — overcharge, short circuit, penetration, crush, thermal — and is engineered to contain the failure. They are complementary: cyclers validate performance, abuse chambers validate safety.
Can one chamber do both UN 38.3 and IEC 62133-2 testing?
Yes, if it covers T.1 through T.8 of UN 38.3 plus the IEC 62133-2 overcharge, short circuit, and thermal abuse clauses. The bench-scale BAC-500 covers T.1–T.5; the walk-in BAC-12W covers the full sequence plus IEC 62660-3 pack-level work.
Do I need a separate chamber for nail penetration and crush testing?
No. A well-designed abuse chamber integrates the nail rig, crush plate, and impact drop in a single work volume. The fixtures are swapped between tests, but the chamber itself is the same. Some labs add a dedicated glove box for pouch cell nail testing, but that is for atmospheric control, not safety containment.
How long does a full UN 38.3 test cycle take?
T.1 through T.7 on a single cell takes approximately 3–4 weeks of calendar time, including 7× 24h conditioning holds and 1× 24h observation between steps. T.8 (forced destruction) is typically 4–8 hours on fresh cells. With 8-cell fixtures, you can run 8 cells in parallel within the same calendar window.
Is the chamber explosion-proof or just fire-suppression-equipped?
Modern battery abuse chambers are not ATEX/IECEx explosion-proof — they are not rated for the pressure rise of a fully vented cell. Instead, they rely on rapid pressure relief (rupture disc or spring-loaded vent), forced N₂ purge, and a fire-rated exhaust path. The chamber itself stays intact; the energy is vented out before pressure can build.
What maintenance does a battery abuse chamber need?
Quarterly: door gasket inspection, IR/CO sensor calibration, rupture disc replacement if it has been subjected to a test. Annually: full safety interlock function test (gas detector response, door interlock, e-stop). After any cell that vented: full interior decontamination + vent stack inspection before next test.
Can a battery abuse chamber be used for normal environmental testing too?
Yes — the thermal/humidity performance is identical to a standard high temperature test chamber. Many labs use the same chamber for environmental qualification (temperature cycling, humidity, altitude) and abuse testing, switching fixtures between runs. The only constraint is decontamination: a chamber used for nail penetration should not run humidity tests until the interior is cleaned.
