Altitude Test Chamber: MIL-STD-810 Method 500 Pilot Guide

A procurement-grade reference for engineers and QC managers selecting altitude test chambers that meet MIL-STD-810H Method 500 — covering four test procedures, pressure–altitude correlations, chamber specifications, and practical test execution tips.

MIL-STD-810H
Method 500.7
Low Pressure
Altitude Simulation
IEC 60068-2-13

Why Altitude Testing Matters for Aerospace and Defense Compliance

When electronic equipment, sealed containers, or aerospace components operate at altitudes above 3,000 meters, atmospheric pressure drops below 70 kPa — roughly 30 % of sea-level pressure. This thin-air environment triggers failure modes invisible at ground level: hermetic seal rupture, lubricant evaporation, reduced heat-transfer efficiency, and corona arcing in high-voltage circuits. MIL-STD-810H Method 500 addresses every one of these risks.

For manufacturers shipping products via air freight or deploying equipment on mountainous terrain, altitude compliance is not optional — it is a procurement gate. Defense contractors, automotive Tier-1s supplying high-altitude markets (e.g., Bolivia, Tibet, Nepal), and avionics OEMs must demonstrate that their hardware survives and operates under prescribed low-pressure profiles before delivery.

If your product portfolio also includes dust-ingress compliance, the IP Dust Test Chamber: IEC 60529 Guide covers the parallel protection rating regime for particulate environments.

MIL-STD-810 Method 500: Four Test Procedures Explained

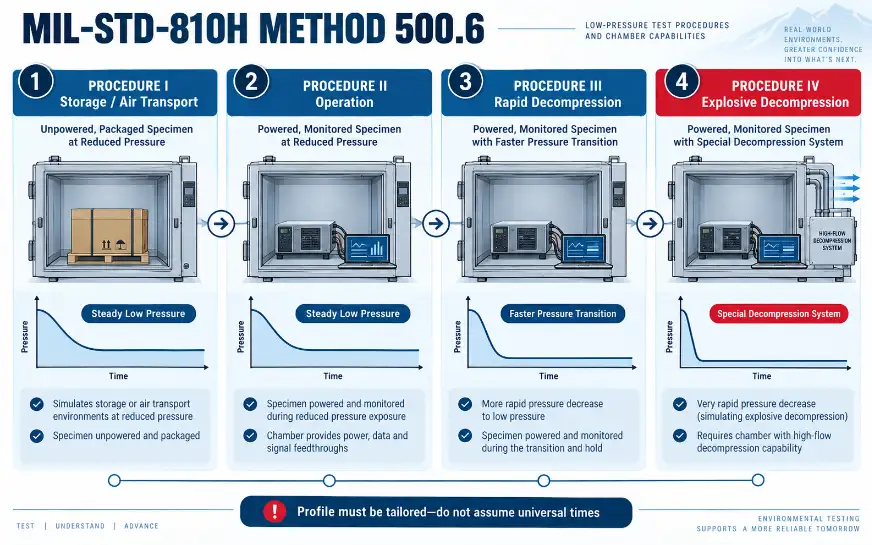

Method 500.7 (the latest revision under MIL-STD-810H) defines four distinct procedures, each targeting a different life-cycle exposure. Selecting the wrong procedure — or skipping one that applies — can invalidate your compliance claim.

Procedure I — Storage / Transportation

Simulates prolonged exposure to low pressure during storage at high ground elevations or air transport in a cargo configuration. The test item remains in its packaging or storage configuration; no operational checks are required during exposure. This procedure is the baseline for any item that may be shipped via air freight, even if it never operates at altitude.

Procedure II — Operation

Evaluates whether the test item functions correctly under low-pressure conditions. The item is powered and exercised at the target altitude pressure. This procedure often follows Procedure I (storage preconditioning) but can stand alone if there are no storage or decompression requirements.

Procedure III — Rapid Decompression

Models a sudden pressure drop — for example, a cargo bay depressurization event. The chamber transitions from storage/operating pressure to the target low pressure within seconds. The standard specifies that the altitude change rate should not exceed 10 m/s for ground tests unless justified by the deployment platform. This procedure checks whether rapid pressure loss causes dangerous reactions that could harm personnel or the transport vehicle.

Procedure IV — Explosive Decompression

An extreme case: "instantaneous" pressure equalization. Used for sealed cockpit equipment where structural failure could endanger occupants. The chamber drops from initial pressure to the target altitude pressure in the shortest achievable time. This procedure is rarely applied to general cargo items and requires careful justification.

Method 500 Test Parameters: Pressure Levels and Altitude Correlations

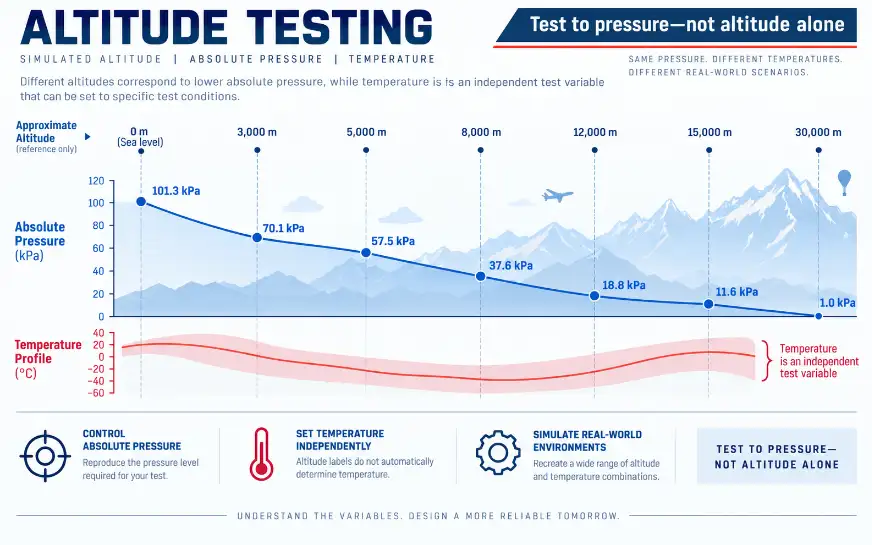

MIL-STD-810H provides reference altitude–pressure pairs that map directly to real-world deployment scenarios. The table below captures the most commonly cited profiles for chamber calibration and test planning.

For detailed temperature test standards that complement altitude profiles — including IEC 60068-2-1/2-2 and the broader MIL-STD-810 thermal methods — see the Common Temperature Test Standards Explained reference.

Altitude vs. Low-Pressure Testing: What's the Difference?

Although the terms "altitude test" and "low-pressure test" are often used interchangeably, they differ in intent and execution. An altitude test simulates a geographic elevation — the chamber pressure corresponds to a specific height above sea level. A low-pressure test may target an arbitrary pressure value that does not map to any real altitude (e.g., vacuum-packaging validation, space-hardware preconditioning).

Most procurement specifications that cite MIL-STD-810 Method 500 require a altitude simulation chamber — one that can simultaneously control temperature and pressure. If your program only needs steady-state low pressure without temperature cycling, a simpler vacuum chamber may suffice. Contact our engineering team to confirm which configuration matches your test plan.

Industry Applications of Altitude Test Chambers

Altitude test chambers serve three primary verticals, each with distinct pressure profiles and compliance requirements.

A high and low temperature test chamber combined with a vacuum system gives you the altitude + temperature dual-axis capability required by most MIL-STD-810 Method 500 test plans. For pure low-pressure validation without temperature, a dedicated altitude chamber with vacuum-only controls is more cost-effective.

Selecting an Altitude Test Chamber: Key Specifications to Evaluate

Choosing the right altitude chamber requires matching five core specifications to your test plan. Below is a procurement checklist that maps each spec to its Method 500 relevance.

Pressure Range and Resolution

MIL-STD-810H altitude profiles go from sea level (101.3 kPa) to 30,480 m (≈1 kPa). Most chambers cover 101 kPa down to 0.5 kPa, which accommodates every standard profile up to 100,000 ft. Pressure resolution matters: ±0.1 kPa at low ranges (below 2 kPa) is the minimum for Procedure III/IV compliance, where tight ramp-rate control is essential.

Depressurization / Repressurization Rate

For Procedures III and IV, the chamber must achieve specific pressure transitions within defined time windows. A chamber rated for ≤20 min depressurization from 101 kPa to 1 kPa can handle Procedure I and II comfortably, but Procedure III may need faster rates. Verify the vacuum pump sizing against your target climb/dive rate (default: 10 m/s for ground tests).

Temperature Capability

Method 500 is often combined with high- or low-temperature testing (Method 501/502). A chamber that offers −70 °C to +150 °C alongside altitude simulation eliminates the need for separate test runs. Check whether humidity control is available when the altitude system is off — most altitude chambers disable humidity at low pressure due to condensation risks.

Interior Volume and Test-Item Fit

Chamber volumes range from 150 L (bench-top) to 1,000 L+ (walk-in capable). Your test item plus fixture, cable routing, and air-flow clearance must fit within the working volume with at least 20 % headroom for uniform pressure distribution. Overloading a chamber degrades pressure uniformity and can cause edge-zone failures.

Safety and Compliance Features

Altitude chambers operate under significant vacuum — structural integrity, over-pressure relief valves, and emergency repressurization are non-negotiable. Explosion-proof configurations are required for battery testing (UN 38.3) or any item with potential energetic failure. ISO 9001 certification and CE marking indicate manufacturing quality baseline.

Practical Tips for Running MIL-STD-810 Method 500 Tests

Tip 1: Sequence Your Tests Correctly

Method 500 should generally run early in the test sequence because it has limited damage potential. However, if your program includes high-temperature or vibration tests that degrade seals or structural integrity, consider running those before Method 500 so that altitude-induced failures are tested on already-stressed hardware — giving a more realistic life-cycle picture.

Tip 2: Validate the Chamber Before Each Test

Pressure calibration drift is the single biggest source of Method 500 test failures. Run a no-load pressure profile at the target altitude before inserting the test item. Log the steady-state pressure for at least 30 min and verify it stays within ±2 kPa (above 40 kPa) or ±0.1 kPa (below 2 kPa) of the set point.

Tip 3: Document Decompression Rates

For Procedures III and IV, the ramp rate is part of the acceptance criteria. Record the time from initial pressure to target pressure with a resolution of ±1 s. If the chamber cannot achieve the specified rate, document the deviation and negotiate an alternative with the test authority — do not simply proceed with a slower ramp.

Tip 4: Monitor Functional Parameters at Altitude

Procedure II requires operational checks while the item is at altitude. Use cable ports to connect external monitoring equipment. For electronic items, measure voltage regulation, signal integrity, and display readability under low pressure. For sealed containers, check for visible deformation or leakage using internal pressure sensors.

Tip 5: Post-Test Inspection Is Mandatory

After repressurization, visually inspect seals, gaskets, and structural joints. Perform a functional re-check at ambient pressure. Any change from pre-test baseline — even minor — must be documented. Method 500 acceptance criteria include allowable pressure differentials, material deformation limits, and functional restoration requirements.

Frequently Asked Questions

What altitude range does MIL-STD-810 Method 500 cover?

Method 500.7 covers altitudes from sea level (101.3 kPa) up to approximately 30,480 m (100,000 ft, ≈1 kPa). It explicitly excludes space vehicles and missiles operating above 21,300 m in sustained flight. For near-space or orbital applications, use dedicated space-simulation standards (e.g., ASTM E595 for outgassing).

Can an altitude chamber simulate temperature and pressure simultaneously?

Yes. Modern altitude test chambers integrate refrigeration/compression systems with vacuum pumps, enabling combined temperature–altitude profiles per MIL-STD-810H Method 506 (temperature–altitude) or IEC 60068-2-39/40. However, humidity control is typically disabled at low pressure because water-vapor behavior under vacuum is unpredictable and can damage the chamber's humidification system.

How is Procedure III (rapid decompression) different from Procedure IV (explosive decompression)?

Procedure III models a rapid but controlled pressure drop — typically within 10–60 seconds — representing a cargo bay depressurization event. Procedure IV models an "instantaneous" pressure equalization where the chamber pressure drops as fast as mechanically achievable. Procedure IV is reserved for sealed cockpit equipment where even brief exposure to intermediate pressures could be catastrophic.

Do I need an explosion-proof altitude chamber for battery testing?

If your test item is a battery or any component with energetic potential, yes. UN 38.3 and IEC 62133 mandate explosion-proof chambers for altitude testing of lithium cells. The chamber must include reinforced walls, pressure-relief vents, and fire-suppression integration. Standard altitude chambers without these features must not be used for battery altitude tests.

What standards besides MIL-STD-810 govern altitude testing?

Several parallel standards address low-pressure environments: IEC 60068-2-13 (low-pressure steady-state), IEC 60068-2-39 (combined temp/humidity/low pressure), RTCA DO-160 Section 4 (avionics pressure), ISO 16750-2 (automotive low pressure), and ASTM D6653 (packaging decompression). GB/T 2423.21/25/26 are the Chinese national equivalents.
