Astm Standard For Uv Resistance Test
Date: 11/26/2025 Categories: Technical articles Views: 5458
ASTM UV resistance testing (primarily ASTM G154 and ASTM G155) is an accelerated laboratory procedure used to simulate outdoor sunlight, moisture, and temperature extremes, allowing manufacturers to predict years of material degradation in weeks. This procurement and QC reference compares fluorescent UV, xenon arc, and related standards for plastics, coatings, and outdoor materials.
At a Glance
- Primary Standard: ASTM G154
- Lamp Options: UVA-340, UVB-313, QFS-40
- Test Cycles: 8h UV / 4h cond, custom
- Chamber Temp: +50 to +70°C
- Irradiance: 0.89 W/m²@340nm
- Specimen Capacity: 48–72 panels
1. Why ASTM Standards for UV Resistance Matter
UV resistance is the single most-cited durability requirement for outdoor products. ASTM maintains a family of standards under the G03 Durability subcommittee that covers fluorescent UV (G154), xenon arc (G155), and carbon arc (G152) exposure methods. Of these, ASTM G154 is the most widely used for plastics, coatings, and adhesives — it is the default UV resistance standard cited in procurement specs across the automotive, construction, and consumer goods industries.
A UV resistance test chamber conforming to ASTM G154 uses fluorescent UV lamps (UVA-340, UVB-313, or QFS-40) to simulate the UV portion of sunlight, with controlled temperature and condensing humidity. G154 is faster and less expensive than xenon arc (G155) but correlates primarily to UV-driven failure modes such as gloss loss, chalking, color change, and polymer chain scission.
Standards hierarchy: ASTM G154 is a practice (how to run the test) — it does not specify pass/fail criteria. The product specification or end-use standard (e.g., AATCC TM 186 for textiles, SAE J2020 for automotive, ISO 4892-3 for plastics) references G154 and adds the pass/fail threshold. This is the most common source of confusion when specifying UV resistance testing.

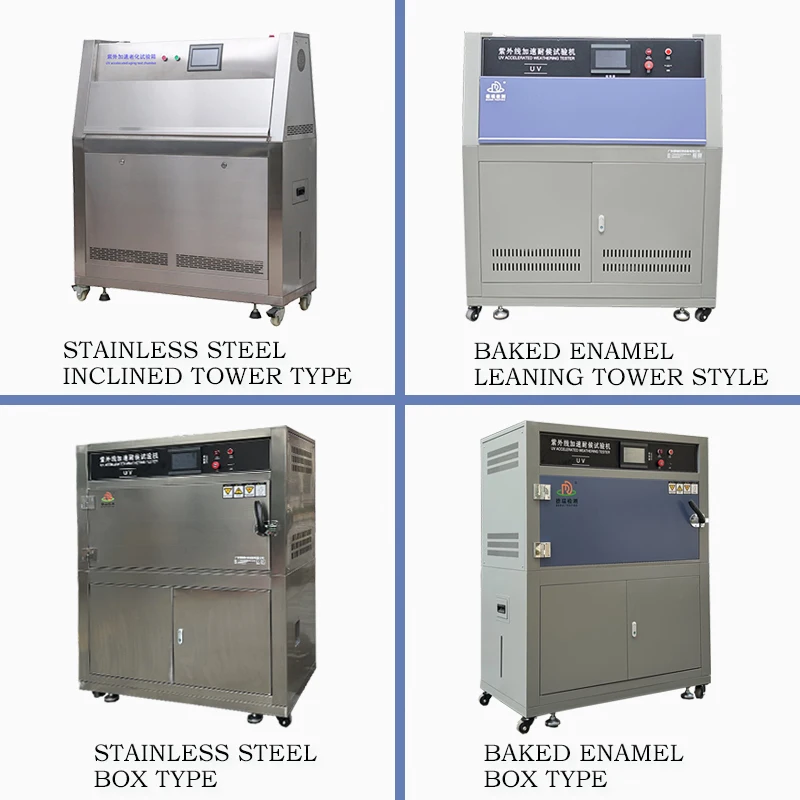

2. Derui UV Resistance Chamber: ASTM G154 Specs
QUV-style fluorescent UV chamber specifications:
Lamp & Irradiance
| Specification | Standard / Value |
|---|---|
| Lamp Type | UVA-340 / UVB-313 / QFS-40 |
| Lamp Count | 8 lamps (4 per side) |
| Lamp Lifetime | 5000–8000 hours |
| Irradiance Range | 0.30–1.55 W/m²@340nm |
| Irradiance Control | Programmable, closed-loop |
| Black Panel Temp | +50 to +80°C |
| Chamber Air Temp | +40 to +65°C |
Humidity, Specimen, and Control
| Specification | Standard / Value |
|---|---|
| Condensing Humidity | 100% RH (condensation cycle) |
| Water Spray | Optional, ASTM G154 Cycle 5 |
| Specimen Capacity | 48 panels (75×150 mm) |
| Specimen Holders | Standard ASTM G154 panel rack |
| Test Cycle Memory | 99 user-defined programs |
| Controller | PLC + 7" color touchscreen |
| Data Logging | USB export, Ethernet optional |
| Chamber Volume | 400 L |
3. ASTM G154 Test Process
Five-phase workflow from specimen prep to final evaluation:
Phase 1 — Specimen Preparation
Test specimens are cut or molded to standard panel size (typically 75×150 mm or 100×300 mm for ASTM G154). Specimens are conditioned at 23°C/50% RH for 48 hours. Baseline measurements are taken: gloss per ASTM D523, color per ASTM D2244, mechanical properties per ASTM D638 (tensile) or D790 (flex), and visual appearance per ASTM D1729.
Phase 2 — Lamp Selection
The choice of UV lamp is critical and depends on the application. UVA-340 simulates sunlight UV through window glass (295–365 nm) and is the default for most outdoor applications. UVB-313 uses shorter wavelengths (280–315 nm) and produces faster degradation — used for QC screening, not for final certification. QFS-40 is the fluorescent sunlamp (290–400 nm) and is used for some textile and coating specs.
Phase 3 — Cycle Definition
ASTM G154 provides several common cycles, or users can define a custom profile. ASTM G154 Cycle 1: 8 hours UV at 60°C BST + 4 hours condensation at 50°C. ASTM G154 Cycle 4: 8 hours UV at 50°C BST + 4 hours condensation at 50°C. ASTM G154 Cycle 5: UV with periodic water spray (interior automotive).
Phase 4 — Chamber Operation
Mount specimens in the panel rack with the test face toward the lamps. Set the cycle parameters on the controller. The chamber runs continuously, automatically switching between UV and condensation phases. Irradiance is automatically controlled via the closed-loop system. Daily checks confirm chamber temperature and lamp operation.
Phase 5 — Evaluation
At programmed intervals (250, 500, 1000, 2000 hours), remove specimens for evaluation. Compare to baseline measurements. Pass/fail criteria are defined in the product specification or end-use standard. Typical criteria: 50% gloss retention at 1000 hours (UVA-340, Cycle 1), ΔE < 3.0 at 1000 hours, or no visible cracking per ASTM D1729.
4. The ASTM UV Resistance Standards Map
Which ASTM/ISO/SAE standard applies to your application:
| Standard | Method | Industry / Application |
|---|---|---|
| ASTM G154 | UV fluorescent (UVA/UVB/QFS) | Plastics, coatings, adhesives, general |
| ASTM G155 | Xenon arc full spectrum | Automotive, paints, building products |
| ASTM G152 | Carbon arc (sunshine type) | Older method, mostly replaced by G155 |
| ISO 4892-3 | UV fluorescent (UVA/UVB) | Plastics, EU equivalent of G154 |
| ISO 4892-2 | Xenon arc | Plastics, EU equivalent of G155 |
| SAE J2020 | UV fluorescent (UVA-340) | Automotive exterior plastics |
| SAE J2527 | Xenon arc | Automotive exterior |
| AATCC TM 186 | UV fluorescent (UVA-340) | Textile UV resistance |
Selection tip: If your customer spec says "UV resistance per ASTM" without specifying a number, ask whether they want G154 (UV fluorescent, faster) or G155 (xenon arc, more realistic). For procurement, G154 is more common; for final certification, G155 is preferred. Many automotive specs require both — run G154 for QC during development and G155 for final PPAP.
5. How to Select a UV Resistance Test Chamber
Five decisions for choosing the right UV chamber for your application:
- Decision 1 — Lamp Type Match: Confirm the chamber supports the lamp specified by your dominant standard. UVA-340 is the default for ASTM G154 / ISO 4892-3 / SAE J2020 / AATCC TM 186. UVB-313 is for accelerated QC only. If you need to run both G154 and G155, you need both types of chambers.
- Decision 2 — Specimen Capacity: A 48-panel chamber is sufficient for most lab QC. For automotive exterior trim PPAP, 100+ panels is common — consider a larger chamber or a second unit.
- Decision 3 — Irradiance Control: Closed-loop irradiance control (automatic adjustment to maintain setpoint) is essential for repeatable results and ISO 17025 accredited reports.
- Decision 4 — Condensation System: ASTM G154 Cycle 1 requires 4 hours of condensation at 50°C. Confirm the chamber has a heated water reservoir with automatic refill and drain.
- Decision 5 — Data Logging & Compliance: For 21 CFR Part 11 / FDA / GMP, look for audit trails; for ISO 17025, look for NIST-traceable calibration certificates.
6. UV Chamber Construction, Lamp Maintenance, and Safety
Chamber Construction: The chamber interior should be stainless steel or PP to resist high humidity. The water reservoir should be corrosion-resistant with a low-water-level sensor.
Lamp Replacement Strategy: UVA-340 lamps lose ~20% output over 5000 hours. Replace lamps at 80% of rated life or after 5000 hours, and replace all 8 lamps simultaneously to avoid irradiance asymmetry.
Water Quality: ASTM G154 requires deionized water (ASTM D1193 Type IV, resistivity > 5 MΩ·cm) for the condensation reservoir to prevent mineral scaling.
UV Safety: The chamber MUST have an interlocked door that automatically extinguishes lamps when opened. Operators should wear UV-blocking safety glasses and long-sleeved lab coats.
7. Frequently Asked Questions (FAQ)
Q1: What is the difference between UVA-340 and UVB-313 lamps?
A: UVA-340 simulates sunlight UV through window glass (295–365 nm). UVB-313 emits shorter wavelengths (280–315 nm) and accelerates degradation 4–5x faster, suitable for QC screening but not recommended for final certification.
Q2: How long should I run a G154 test?
A: Common durations: 500 hours (QC), 1000 hours (general outdoor warranty), 2000 hours (extended warranty). Each 1000 hours of UVA-340 approximates roughly 1–2 years of outdoor Florida exposure.
Q3: What does G154 Cycle 1 mean?
A: Cycle 1 is 8 hours UV exposure at 60°C black panel temperature, followed by 4 hours condensation at 50°C, repeating continuously as the default outdoor UV testing cycle.
Q4: Can I run G154 and G155 tests in the same chamber?
A: No. G154 uses fluorescent UV lamps and G155 uses xenon arc. They are physically different light sources requiring separate chambers.
Q5: How much does a UV resistance chamber cost?
A: A 48-panel ASTM G154 compliant chamber starts at $5,000–$8,000. Larger units run $10,000–$18,000. Xenon arc G155 chambers run $20,000–$60,000+. Contact Derui for a custom quote.
