Temperature Test Chamber vs. Thermal Shock Chamber: Key Differences
What Is a Temperature Test Chamber?
A temperature test chamber is an environmental testing device that exposes products to controlled temperature conditions — either constant or gradually changing — to verify performance, reliability, and compliance with industry standards.
It works by circulating heated or cooled air inside an insulated chamber. Temperature changes are gradual (ramp rates 1–15°C/minute), simulating real-world environmental conditions such as:
- Outdoor temperature cycles (day/night, seasonal)
- Storage and transport environments
- Operating temperature ranges per product specification
What Is a Thermal Shock Test Chamber?
A thermal shock test chamber subjects products to extreme, rapid temperature transitions — typically from -40°C to +125°C (or higher) in under 10 seconds.
The goal is different: thermal shock testing accelerates failure modes caused by material mismatch and thermal expansion stress, such as:
- Solder joint cracking in PCBs
- Ceramic capacitor micro-cracking
- Plastic housing warpage or embrittlement
- Glass-to-metal seal failure
Two common designs: two-zone (move product between chambers) and three-zone (hot zone, ambient, cold zone — product stays on a moving basket).
Head-to-Head: 7 Key Differences
| Feature | Temperature Test Chamber | Thermal Shock Chamber |
|---|---|---|
| Temperature transition | Gradual ramp (1–15°C/min) | Instant switch (<10 seconds) |
| Primary purpose | Qualification, compliance, R&D | Reliability screening (ESS), failure acceleration |
| Test standards | IEC 60068-2-1/2, ISO 16750 | IEC 60068-2-14, MIL-STD-810H Method 503 |
| Cycle duration | Hours to days per test | Minutes per cycle (5–30 min dwell) |
| Product stress level | Low to moderate | Very high (accelerated failure) |
| Chamber construction | Single zone, one air handler | Two or three zones, transfer mechanism |
| Price range (200L) | $8,000 – $25,000 | $25,000 – $70,000 |
When to Use Each: Decision Guide
✅ Use Temperature Chamber When...
- You need IEC/ISO/MIL-STD compliance
- Testing product operating range
- R&D characterization
- Budget is limited
- Testing large or heavy products
✅ Use Thermal Shock When...
- Automotive / aerospace component reliability
- Screening production batches (ESS)
- Assessing solder joint reliability
- Customers specifically request Method 503
- You need fast test turnaround
Can One Chamber Do Both?
Some advanced chambers offer a "dual-mode" configuration: with a fast ramp rate (10–15°C/min) and a separate thermal shock basket option, a single rapid temperature change chamber can handle both gradual cycling and accelerated shock profiles.
This is not a full replacement for a dedicated thermal shock chamber (which achieves <10s transition), but for many automotive suppliers, a 15°C/min rapid change chamber covers both IEC 60068-2-14 and standard qualification testing — at 40–50% of the cost of two separate chambers.
Compliance Standards Compared
| Standard | Applicable to Temp Chamber | Applicable to Thermal Shock |
|---|---|---|
| IEC 60068-2-1 (Cold) | ✅ | — |
| IEC 60068-2-2 (Dry Heat) | ✅ | — |
| IEC 60068-2-14 (Thermal Shock) | — | ✅ |
| MIL-STD-810H Method 501/502 | ✅ | — |
| MIL-STD-810H Method 503 | — | ✅ |
| ISO 16750-4 | ✅ | ✅ (optional) |
Summary: Which One Do You Need?
Buy a Temperature Test Chamber if: You need broad compliance coverage, have a limited budget, or test large products. This is the workhorse chamber for 80% of labs.
Buy a Thermal Shock Chamber if: You are in automotive/aerospace supply chain, need production screening (ESS), or have specific shock test requirements from your customers.

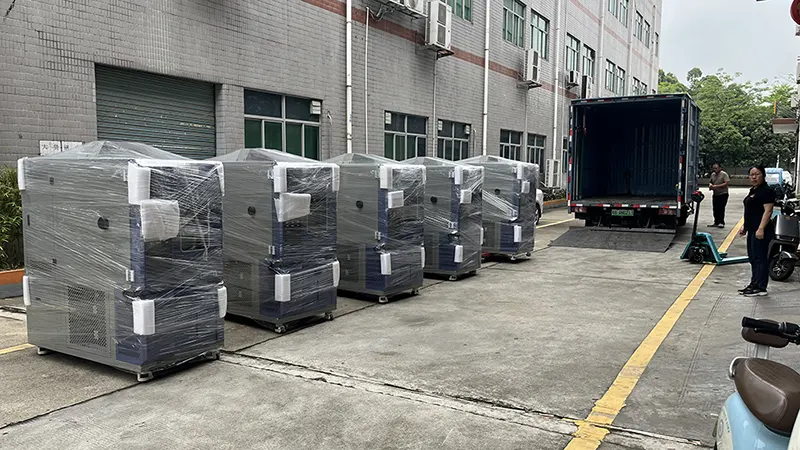

Derui manufactures both temperature test chambers (-70°C to +200°C, 50L–3000L) and thermal shock chambers (two-zone & three-zone, up to 100°C/min transition). All chambers are ISO 9001 certified and backed by a global service network.
