Power Supply Aging Tests: Ensuring Long-Term Reliability

The Power Supply Aging Test System: Core Principles & Practical Implementation

The power supply, acting as the "energy heart" of electronic equipment, has its long-term stability directly determining the overall reliability of the device. Before leaving the factory, conducting aging tests to expose potential failures in advance becomes a crucial step in ensuring power supply product quality. This article starts from the core principles, progressively deconstructs the system's practical composition and operational logic, providing an objective reference for related technical applications.

I. Core Principles of Power Supply Aging Testing
Aging testing is not simply "powering on for a long time." Its essence is to simulate the typical working states throughout the power supply's full lifecycle, accelerating the manifestation of potential defects through the scientific application of stress, thereby screening out early failure products and reducing end-use risks. Its core principles can be broken down into three key links:

• Stress Application: Simulate core stresses like load, voltage, and temperature based on the power supply's actual application scenarios. For example, set constant or intermittent loads for industrial power supplies, while controlling the ambient temperature to fluctuate within its operating temperature range, ensuring test conditions are close to real usage and avoiding "over-testing" or "under-testing."
• Fault Monitoring: Track key operating parameters of the power supply in real-time, including output voltage stability, current fluctuation, and internal temperature. When parameters exceed preset thresholds (e.g., voltage fluctuation exceeds ±2%), the system automatically marks the power supply as a potential failure product, achieving "early detection, early screening."
• Data Recording: Synchronously collect parameter changes throughout the test process. This data is not only used to determine product qualification but also provides a basis for subsequent failure mode analysis. For example, by recording voltage decay curves, hidden issues like component fatigue or poor circuit contact can be identified, allowing for reverse optimization of product design or production processes.

II. Practical Composition and Workflow of the Aging Test System
A complete aging test system requires hardware and software collaboration to both meet the need for "simulating real working conditions" and ensure the testing process is controllable and results are traceable. Practically, it can be divided into "System Composition" and "Operational Workflow."

1. System Core Composition:
   The system consists of hardware modules and software modules, each with clear functions and mutual coordination:

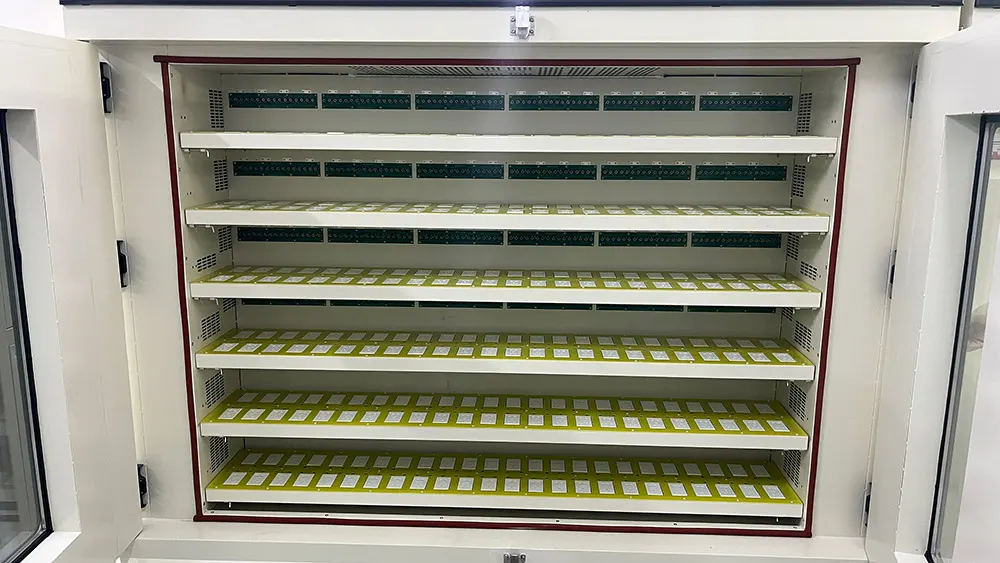

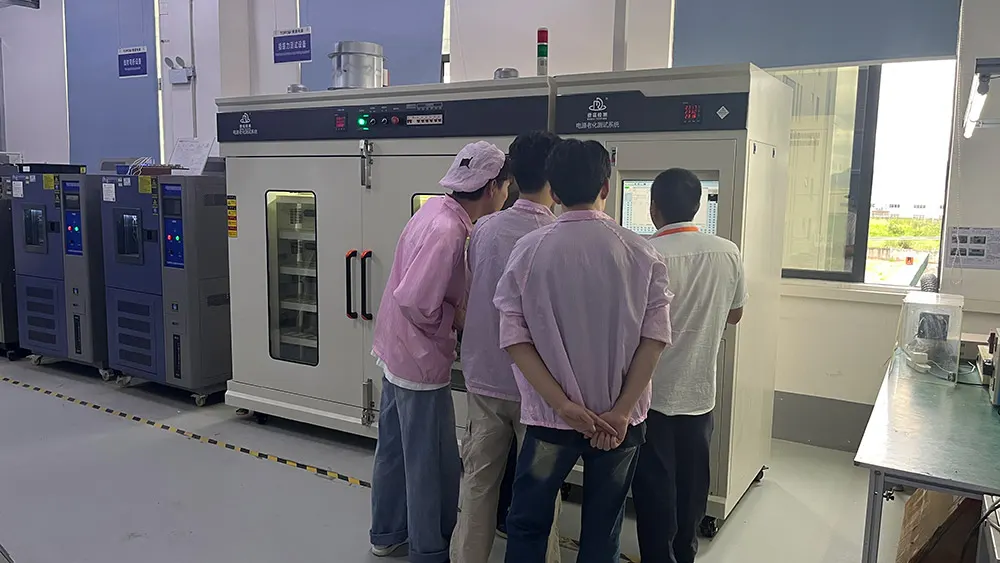

   • Hardware Modules: Include Load Modules (simulating the power demands of different devices, adjustable load type and size to adapt to different power supply specifications), Environmental Simulation Modules (e.g., constant temperature and humidity chambers, controlling test environment temperature/humidity, excluding external interference), and Monitoring Modules (including voltage/current sensors, temperature probes for real-time data acquisition).
   • Software Modules: Divided into Control Modules (setting test parameters like duration, load cycles, fault thresholds, automating test execution) and Analysis Modules (processing collected data, generating test reports, visually presenting power supply stability performance).
2. Practical Operational Workflow:
   The testing process should follow the "Preparation - Setting - Monitoring - Analysis" logic, ensuring each step meets quality control requirements:
   • Test Preparation: Confirm the specifications of the power supplies under test, match the corresponding load modules and environmental parameters, and check hardware connections to avoid poor contact affecting results.
   • Parameter Setting: Based on product standards or customer requirements, set test duration, load mode, and fault judgment criteria in the software.
   • Operation Monitoring: After starting the system, observe parameter curves on the software interface in real-time. If events like current drops or abnormal voltage fluctuations occur, pause the test promptly to investigate, ensuring a controllable process.
   • Result Analysis: After testing, use the analysis module to screen qualified products. For failed products, combine data records to locate the cause of failure, providing direction for production improvement。

III. Key Considerations in System Application
To ensure the accuracy and safety of test results, the following points need special attention in practical application:

• Safety Protection: The power supplies and loads generate heat during testing. Ensure adequate system heat dissipation and proper grounding to prevent electric shock or equipment damage from overheating.
• Test Consistency: The same batch of products must be tested using identical parameters and environmental conditions to avoid non-comparable results due to parameter variations, which could affect quality judgment.
• System Maintenance: Regularly calibrate voltage/current sensors and check the stability of load modules to ensure the accuracy of the test equipment itself, avoiding misjudgments caused by equipment errors.

IV. Regarding Technical Support and Cooperation
The design and application of a power supply aging test system must consider specific product characteristics – test requirements differ for industrial versus consumer power supplies, and standards for medical equipment power supplies require stricter adaptation. If you have questions regarding system selection, parameter setting, technical optimization, or need customized testing solutions tailored to your products, please feel free to contact us. Based on professional technical experience, we can provide targeted technical support to assist you in improving the efficiency of your power supply product reliability testing.
